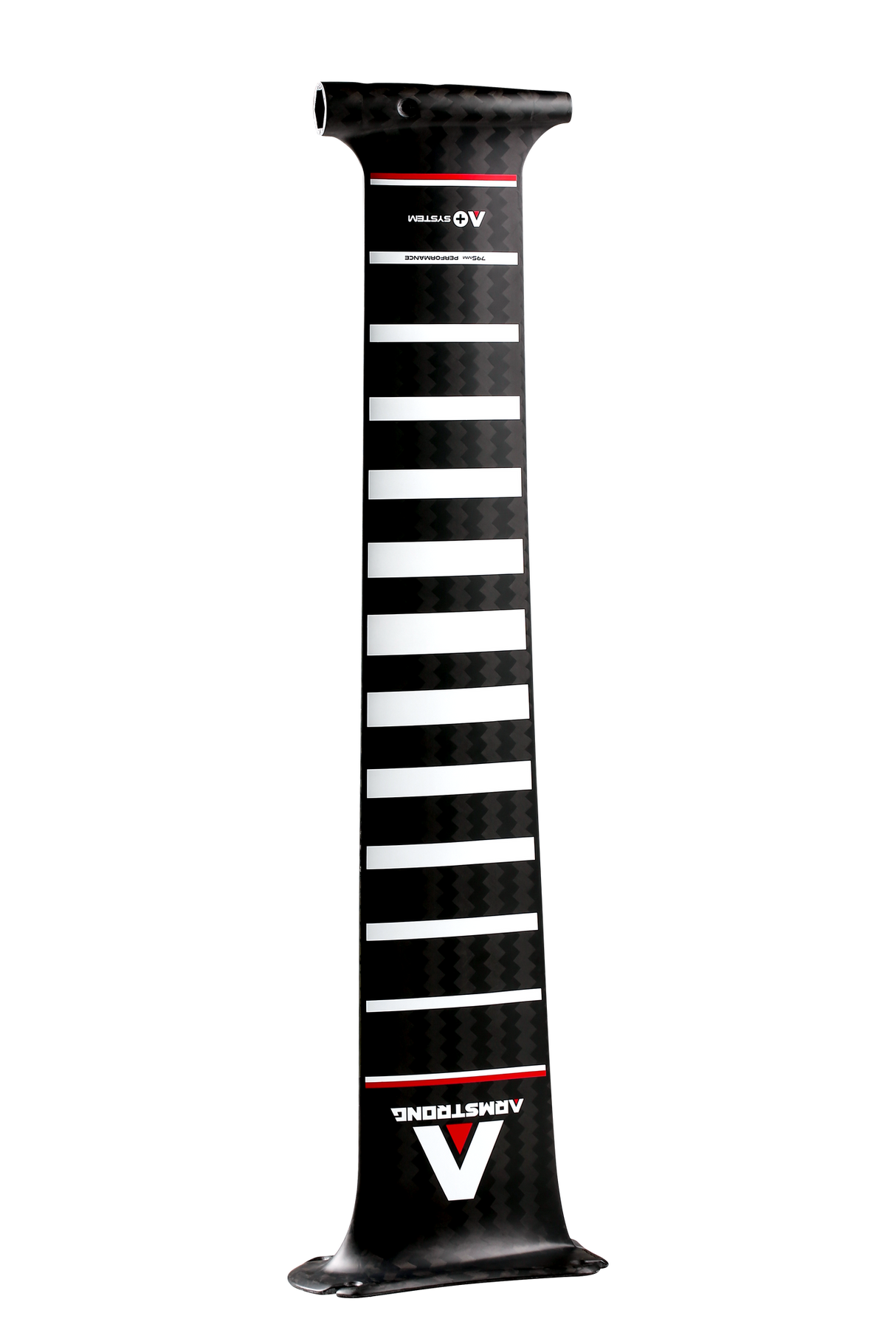

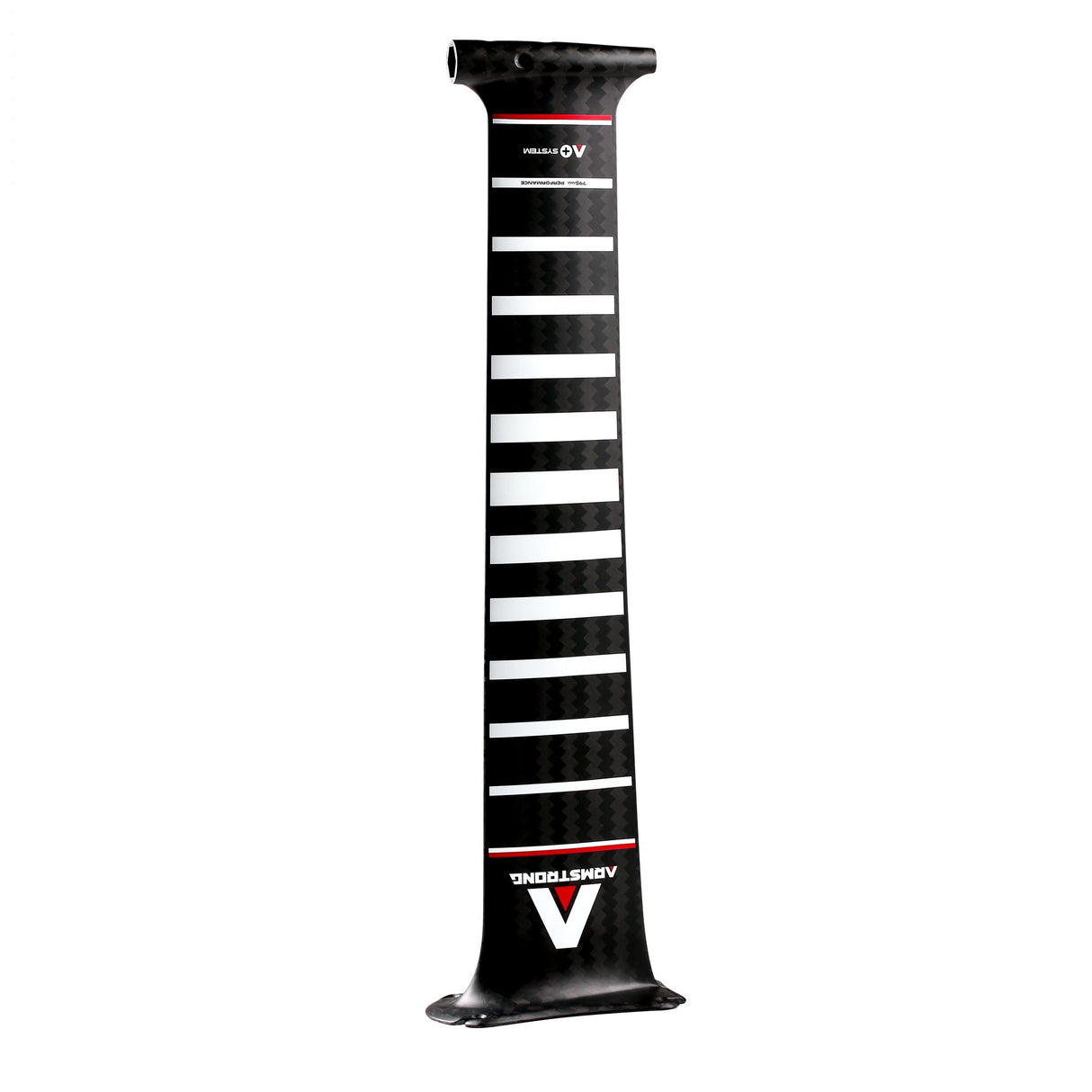

Armstrong 2023 A+ Performance Mast

Armstrong Performance Mast Development
“As the sport develops, riders push themselves and the equipment to the limits. After listening to feedback, we wanted to develop a new, innovative, ultra high-performance mast that minimizes drag and ventilation while also being stiffer and even more responsive.” - Armie Armstrong

Collaborating with a team of America’s Cup foil engineers, we set out to develop a high performance mast to take us into the future. Our design goal called for a unique blend of strength, stiffness, drag and light weight. Combining CFD analysis with expert insight allowed us to tune each section of the mast from baseplate to fuselage connection for maximum efficiency.

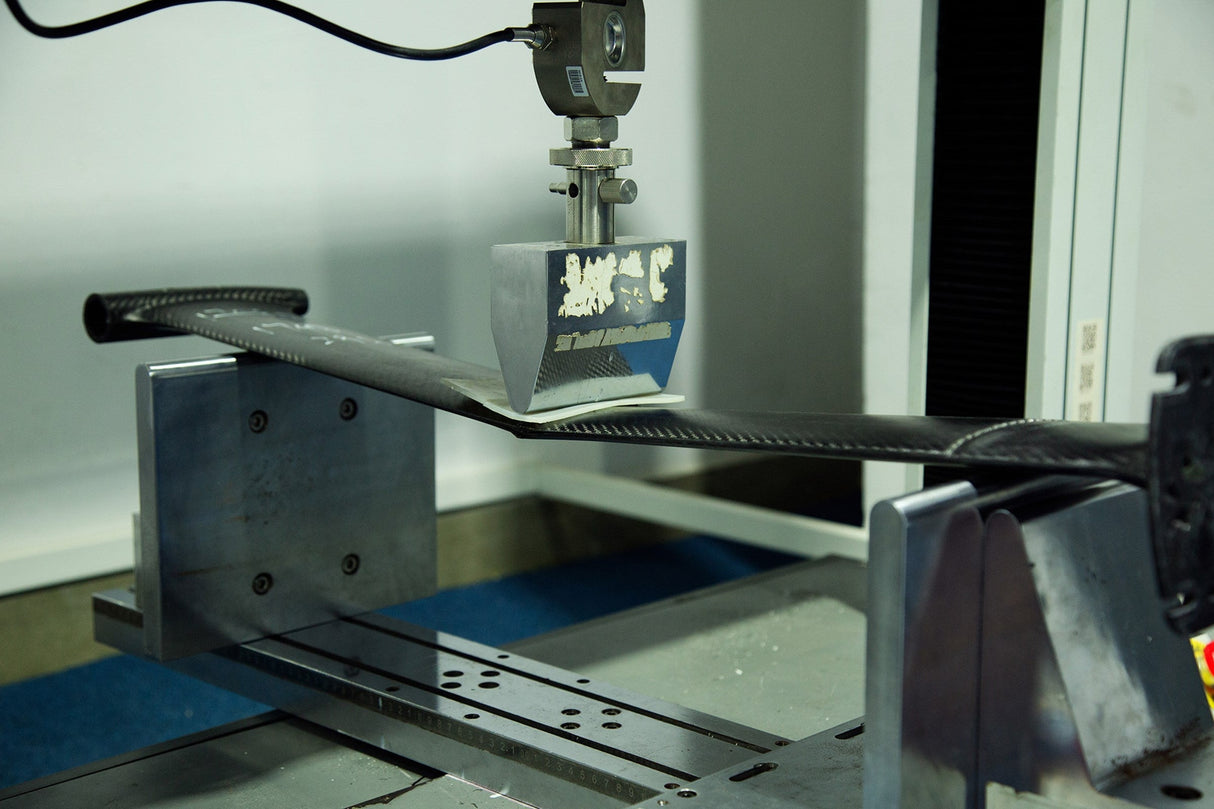

“Working with the latest premium composites available, we torture tested over 100 prototypes to work out the optimal fiber orientation for strength and designed flex. In keeping with our philosophy of strength and light weight, we redesigned the mast top geometry to shave off every possible extra gram of dead weight.” - Armie Armstrong

Structural analysis shows that a combination of both high modulus (HM) and intermediate modulus (IM) carbon fibers best distributes loads throughout various sections of the mast. HM's stiffness minimizes flex in the mast's central strut area and IM's high tensile strength caters to the complex shapes of the top plate and fuselage connection.

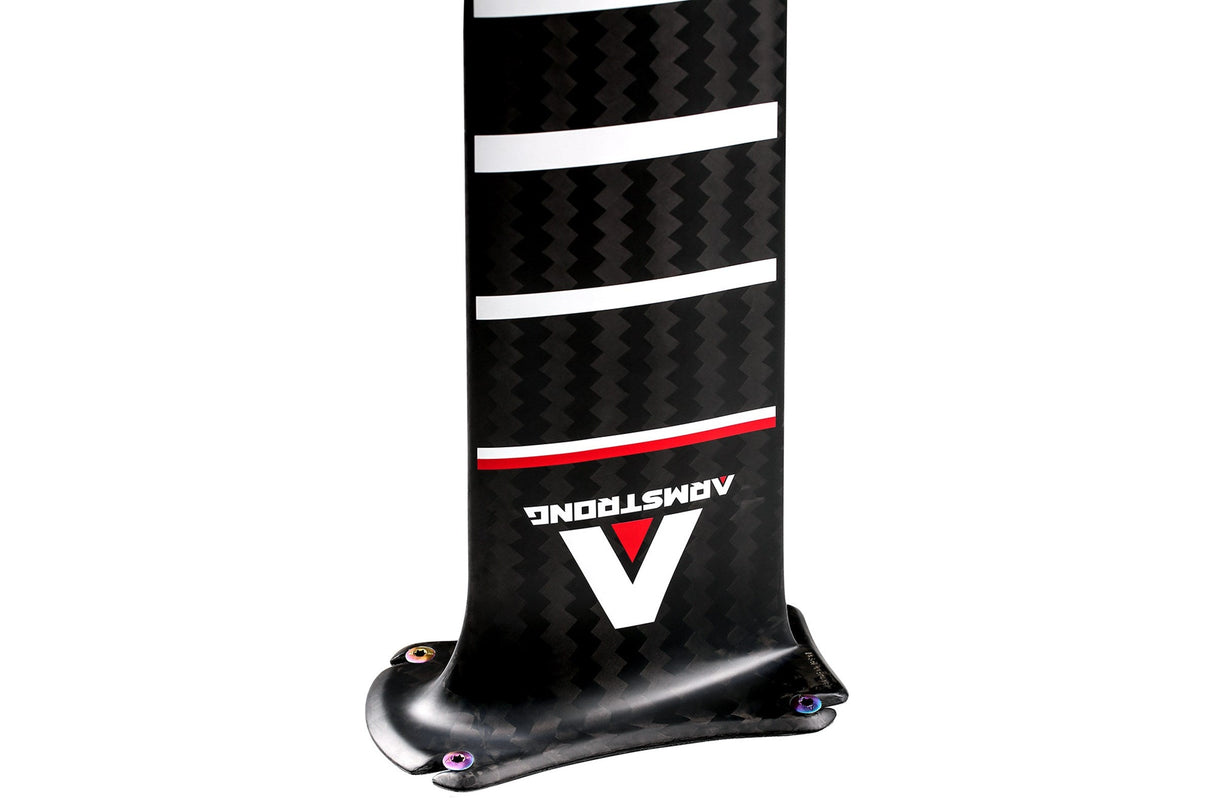

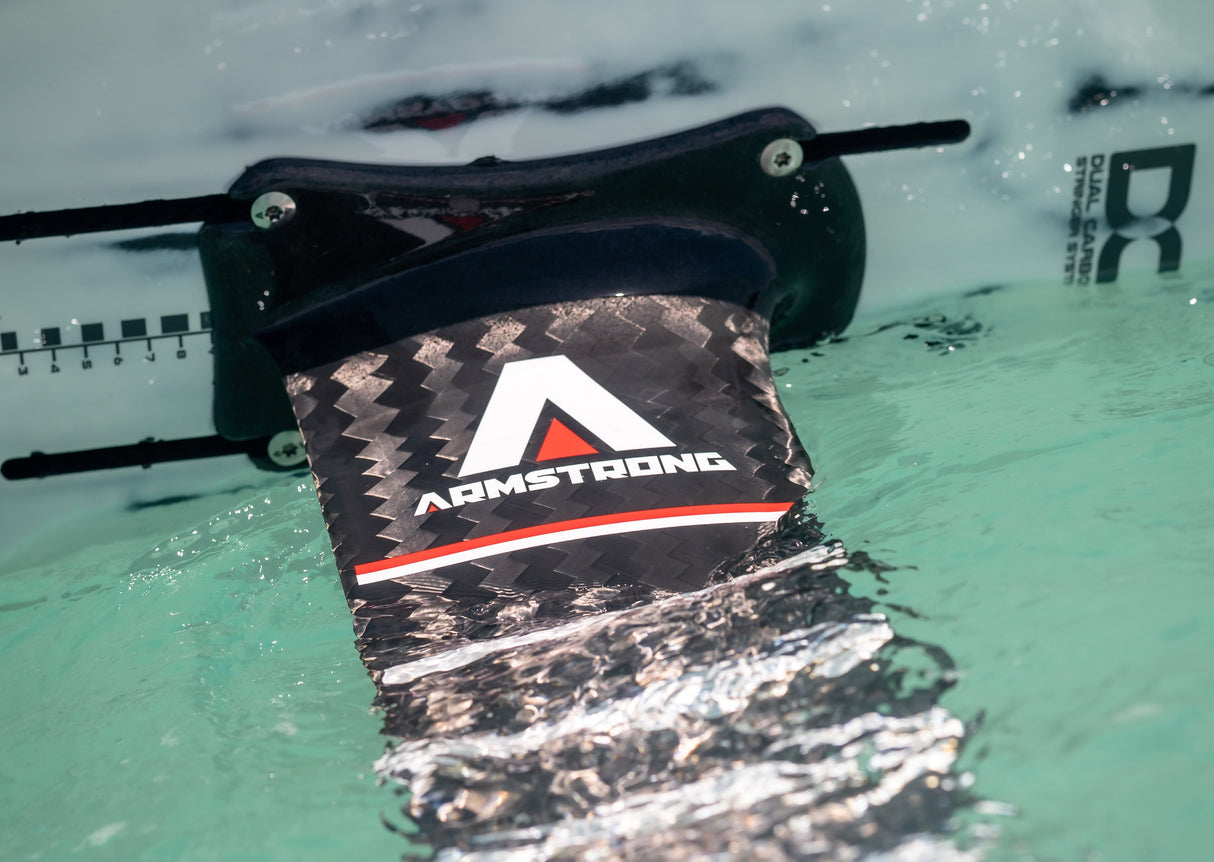

The result is a top of the line mast consisting of top shelf materials, new mast section, refined baseplate, reduced drag fuselage connection and new construction method. Proprietary titanium M7 mast top hardware follows suit with a strong, light and drag reducing connection to the board.

These masts are designed with a mast rake angle. This fine tunes the board angle relative to the foil for a more comfortable and forgiving ride. It does not change the lifting force or balance of the foil itself, and it does not impact the foil’s “foot pressure” bias front or back. Board rocker also directly determines effective mast rake – boards from different brands have a variety of different rocker lines which influence rake angle – and more rocker in the rear half of board effectively increases mast rake. The 1 degree of rake we’ve placed specifically into the top of the Performance Mast shape provides three main benefits by adjusting the board relative to the foil underwater:

By bringing the foil closer to 0 degrees when the board is in the water, drag is reduced which makes takeoffs easier.
Touching down at speed or landing a jump is more forgiving and there’s less chance of crashing headfirst over the board.
By lifting the board nose slightly (1 degree = 17.46mm/m), mast rake makes it easier to ride fast without catching the nose at steep riding angles.

Simply put, the Performance Mast range takes the sublime Armstrong feeling further than ever.

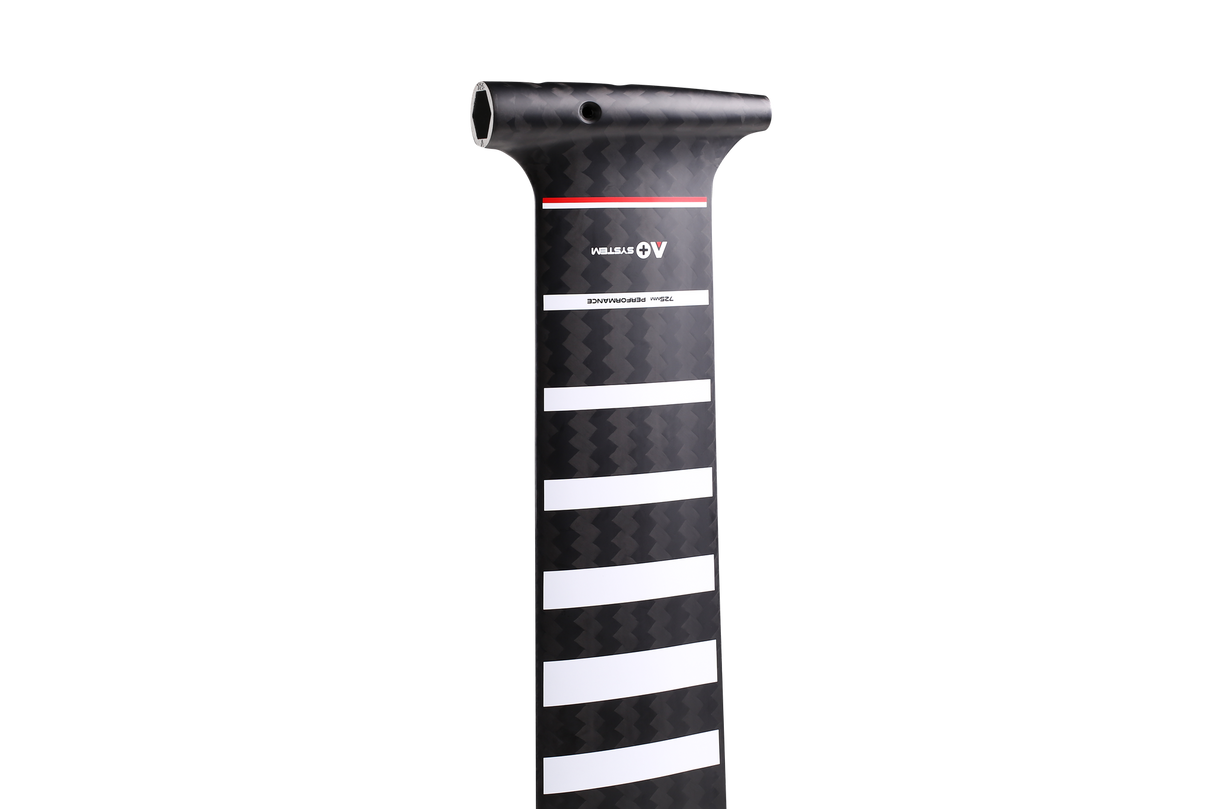

The Armstrong Performance Mast range is a clean-sheet design created in collaboration with a team of America’s Cup foil engineers. These Performance series mast have achieved a unique combination of efficiency, stiffness, and control at speed that caters to wing, tow, and kite foilers. Top shelf materials have allowed this mast to take our sublime Armstrong feeling further than ever.

Features

• By bringing the foil closer to 0 degrees when the board is in the water, drag is reduced which makes takeoffs easier.
• Touching down at speed or landing a jump is more forgiving and there’s less chance of crashing headfirst over the board.
• By lifting the board nose slightly (1 degree = 17.46mm/m), mast rake makes it easier to ride fast without catching the nose at steep riding angles.
• Package Includes
• Performance Mast with Cover

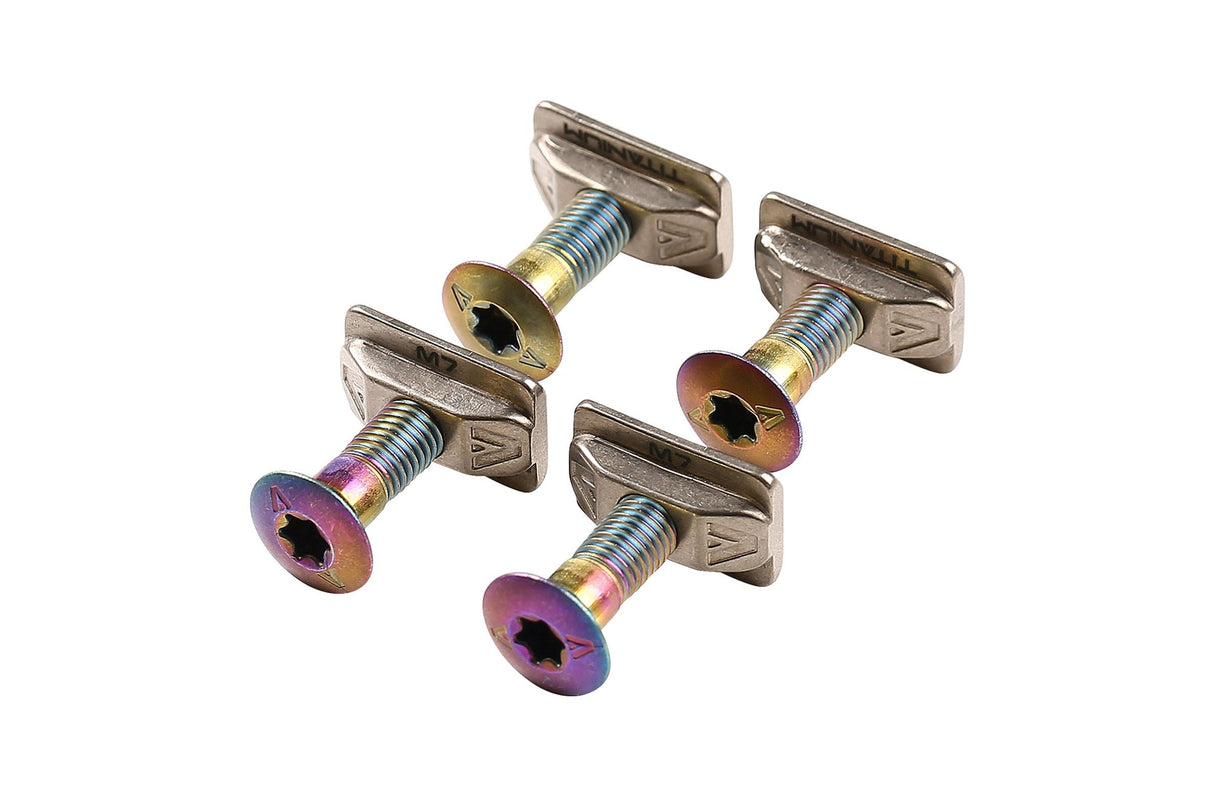

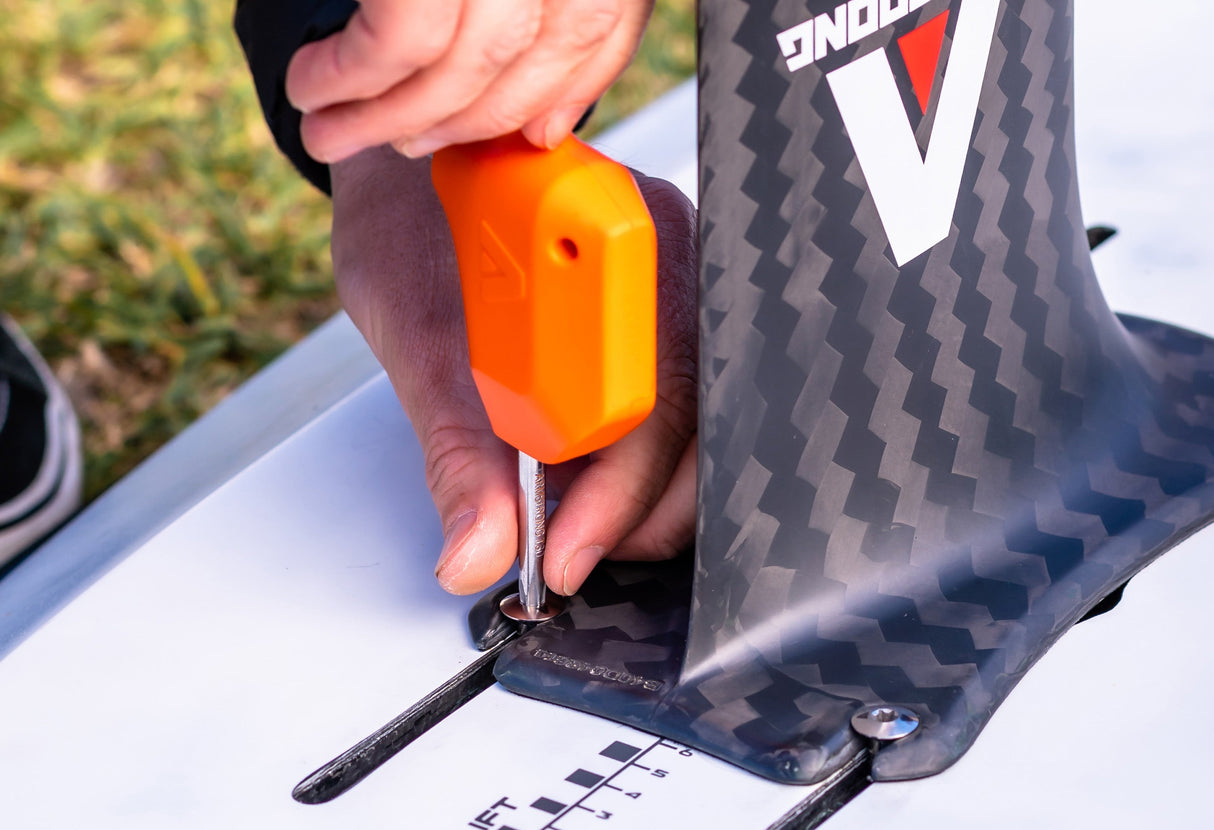

• Armstrong M7 Titanium T Nut Set with 25mm 316L Stainless Screws
• M7 x 30mm screw lengths are not included and may be required for some brands of foilboards. Included M7 x 25mm screws are required for Armstrong boards.
• M7 x 30mm Screw Sets Sold Separately
• The Performance mast range is a clean-sheet design that takes the Armstrong feeling riders know and love to new heights.
• Sophisticated engineering and top shelf Toray high modulus carbon give these masts a unique combination of efficiency, stiffness and control at speed.

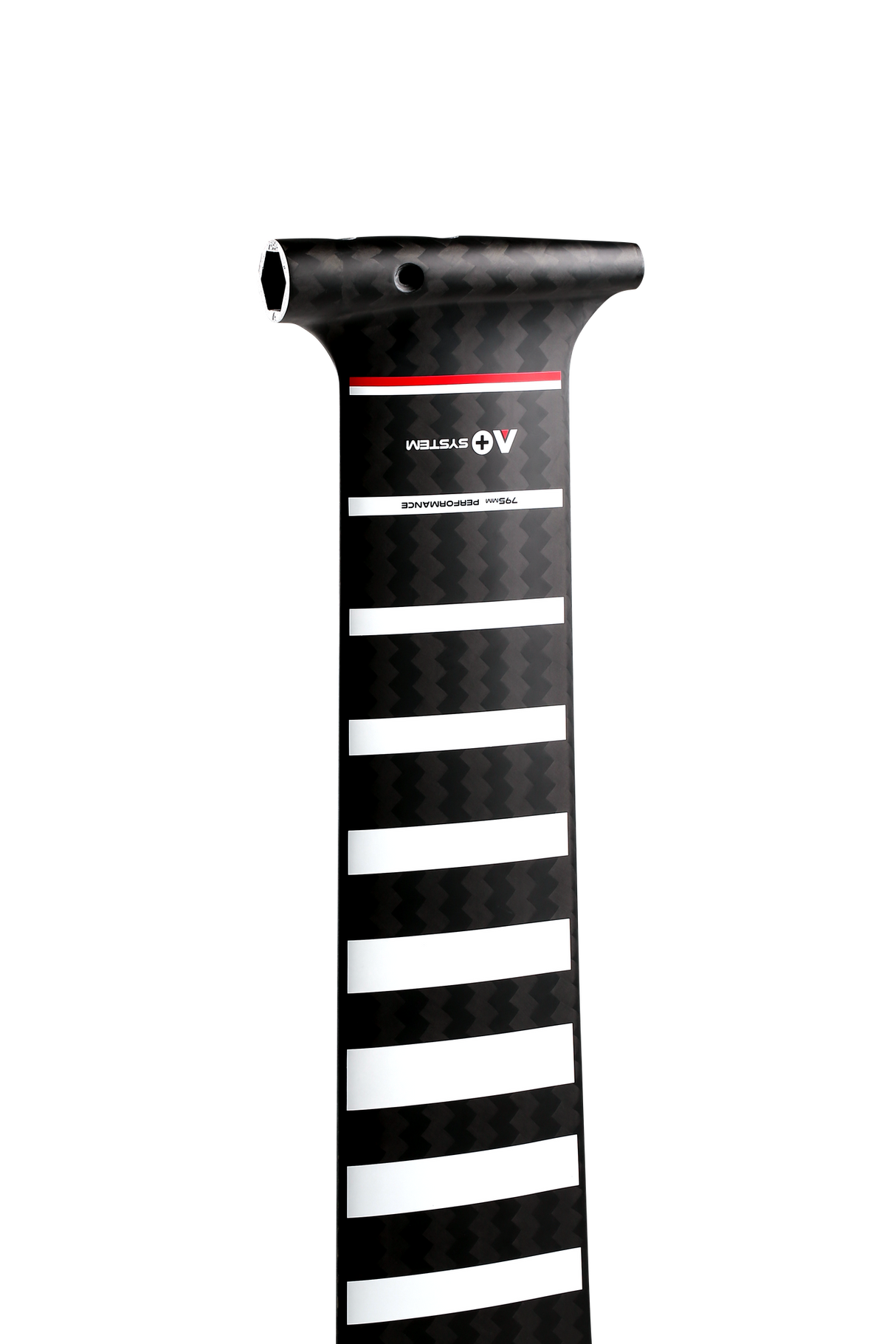

Armstrong Performance 795
Highly responsive for prone surf, wing, wake foiling and SUP surf/downwinding.

Specifications
Length: 795mm
Weight: 1745g

Recommendations
PRONE SURF
WING
WAKE
SUP SURF
DOWNWIND

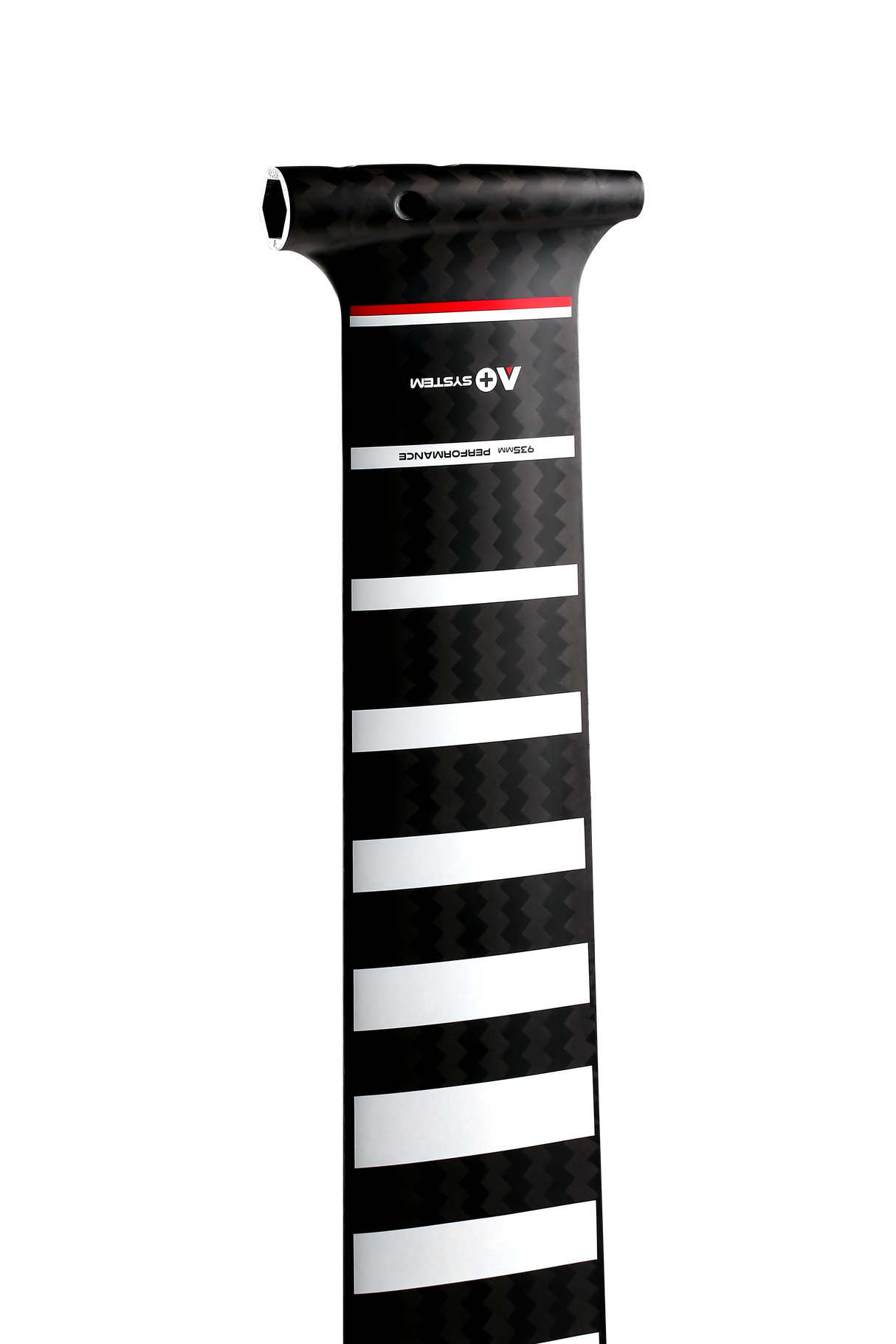

Armstrong Performance 935
All-around size for wing, tow, kite foiling and high wind downwinding.

Specifications
Length: 935mm
Weight: 2075g

Recommendations
WING
TOW SURF
KITE
DOWNWIND

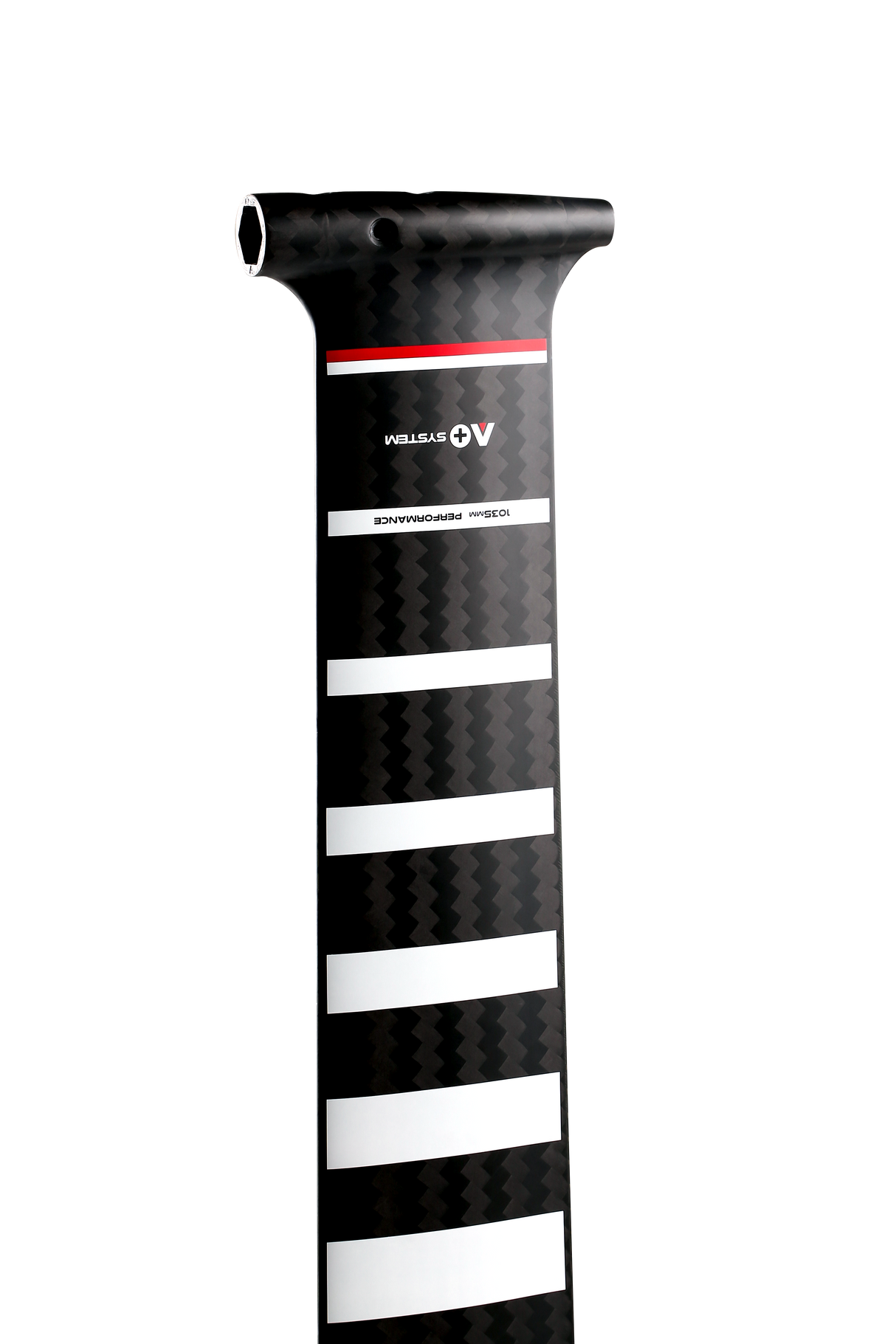

Armstrong Performance 1035
Control at speed for high speed winging, kiting and tow foiling in larger surf.

Specifications
Length: 1035mm
Weight: 2195g

Recommendations
WING (HIGH WIND/RACE)
TOW SURF (XL)
KITE

AVAILABLE TO PRE-ORDER NOW

Due to overwhelming demand from riders seeking expanded size options in the Performance mast range, we developed the 865, 725 and 655. As foiling equipment becomes increasingly discipline and spot-specific, we’re here to enable riders to explore their progression across the board.

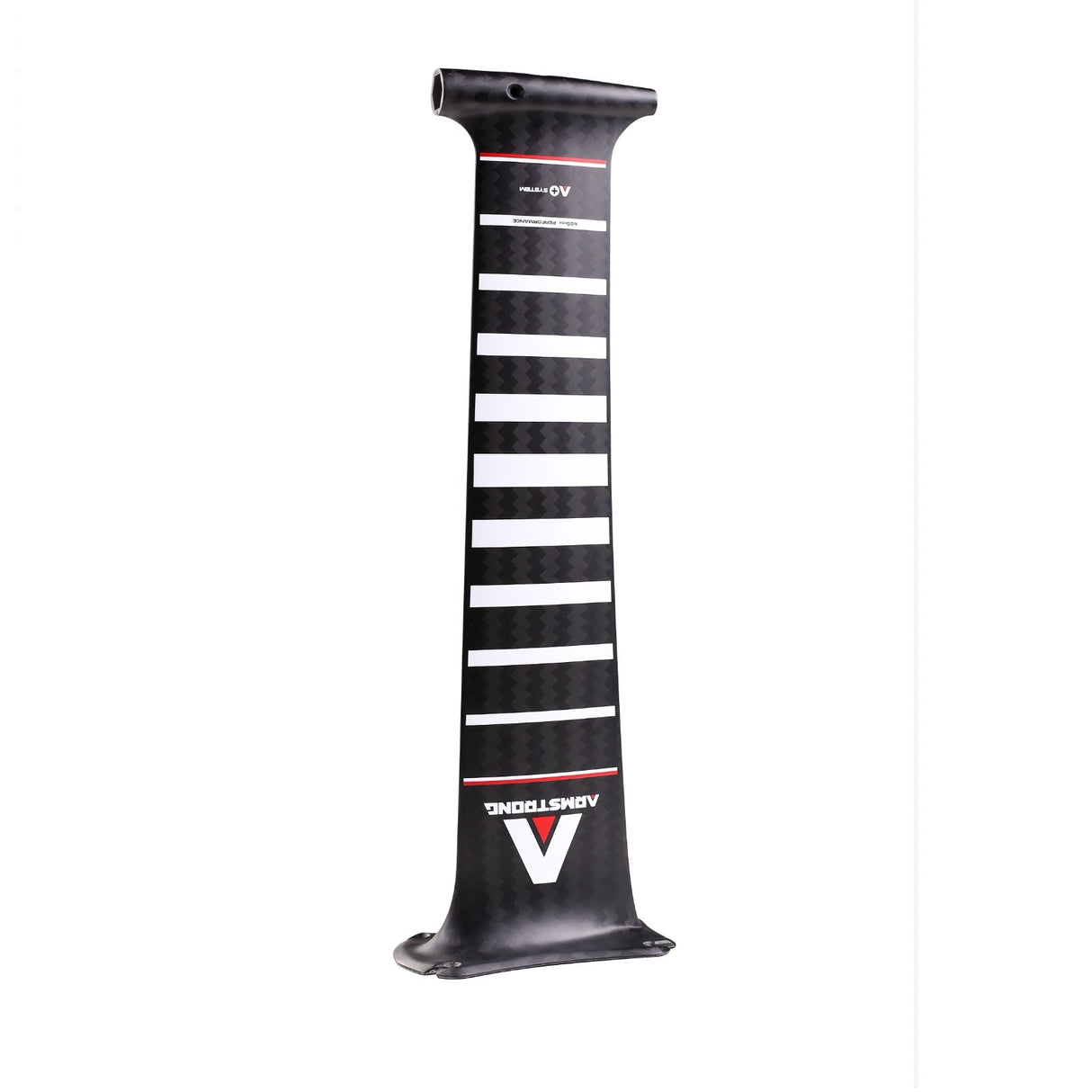

Performance Mast MA655
Exceptional performance for flatwater pump, shallow water riding and young rippers.

Specifications:
LENGTH: 655mm
WEIGHT: 1600g

Recommendations:
PUMP, PRONE SURF, SUP SURF

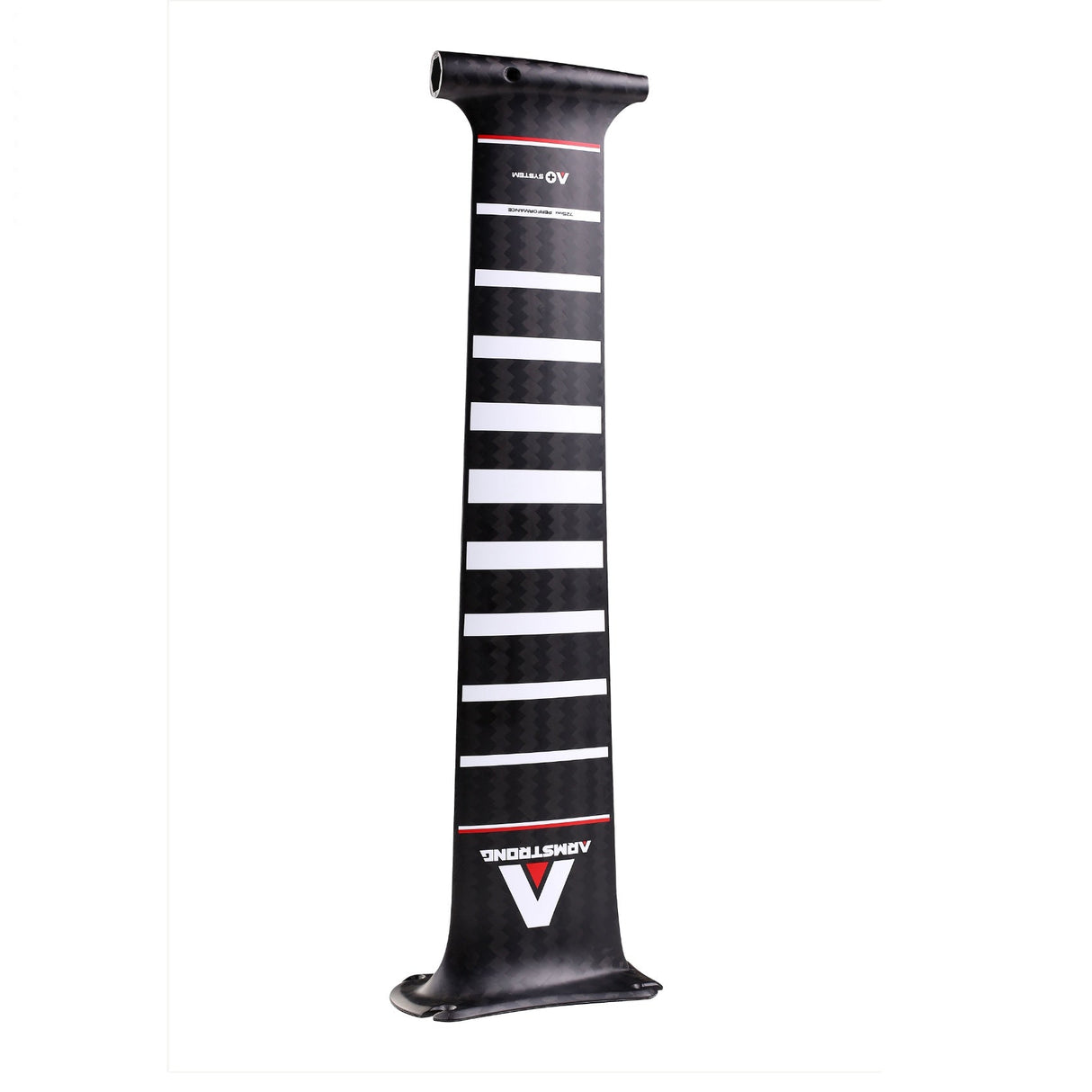

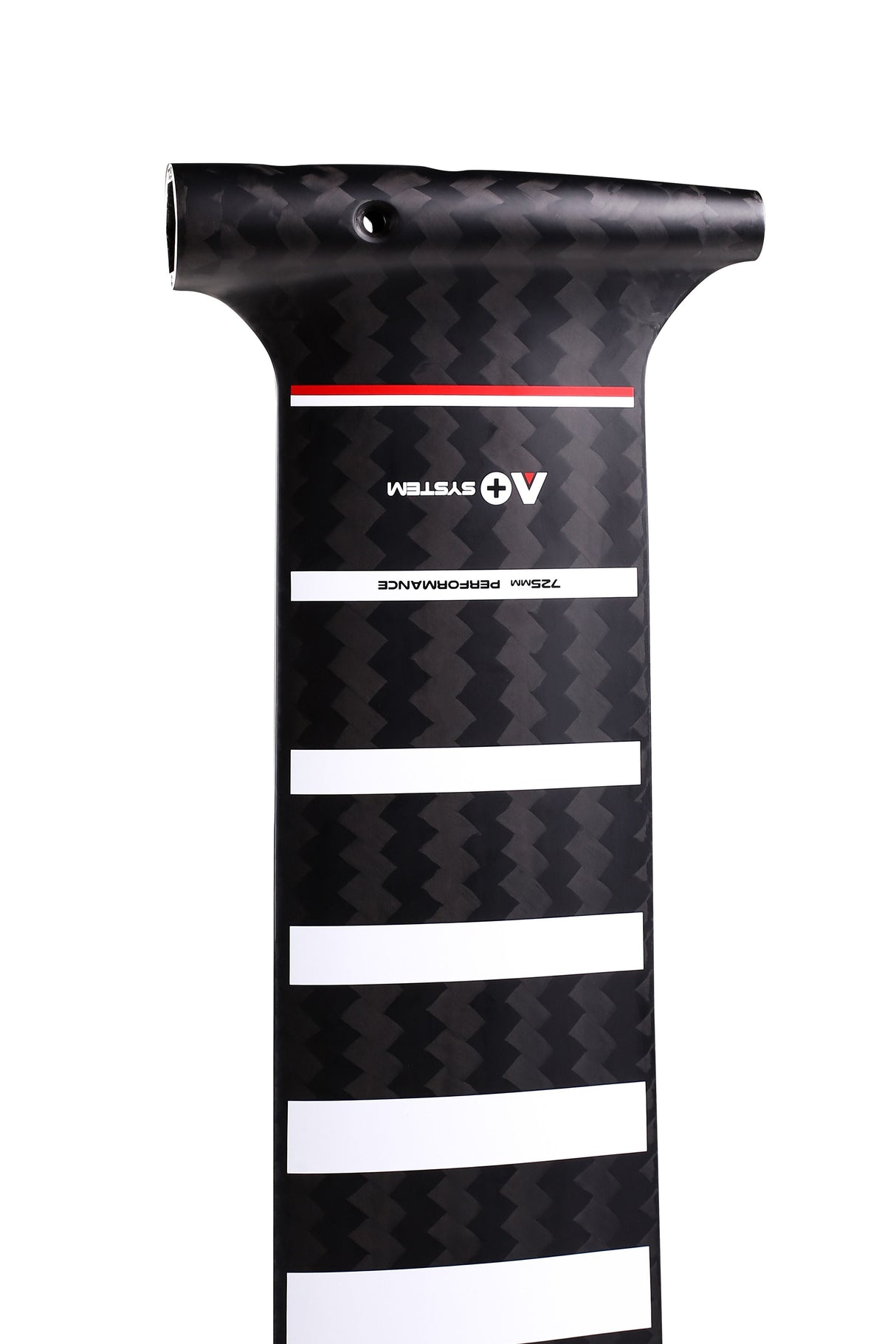

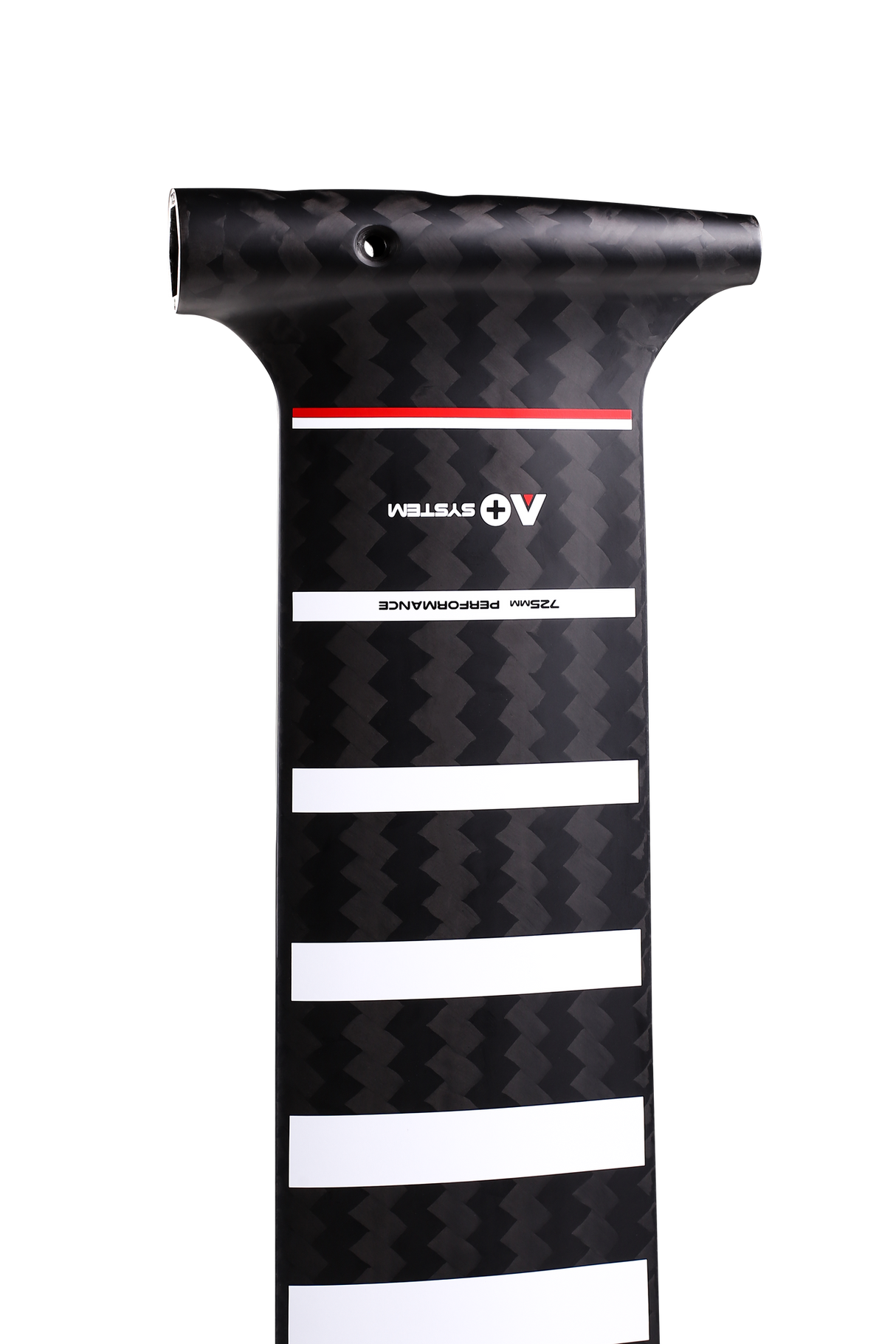

Performance Mast MA725
Highly manoeuvrable for prone surf, pump, SUP surf, wake, downwind and wing.

Specifications:
LENGTH: 725mm
WEIGHT: 1700g

Recommendations:
PRONE SURF, PUMP, SUP SURF, WAKE, DOWNWIND, WING

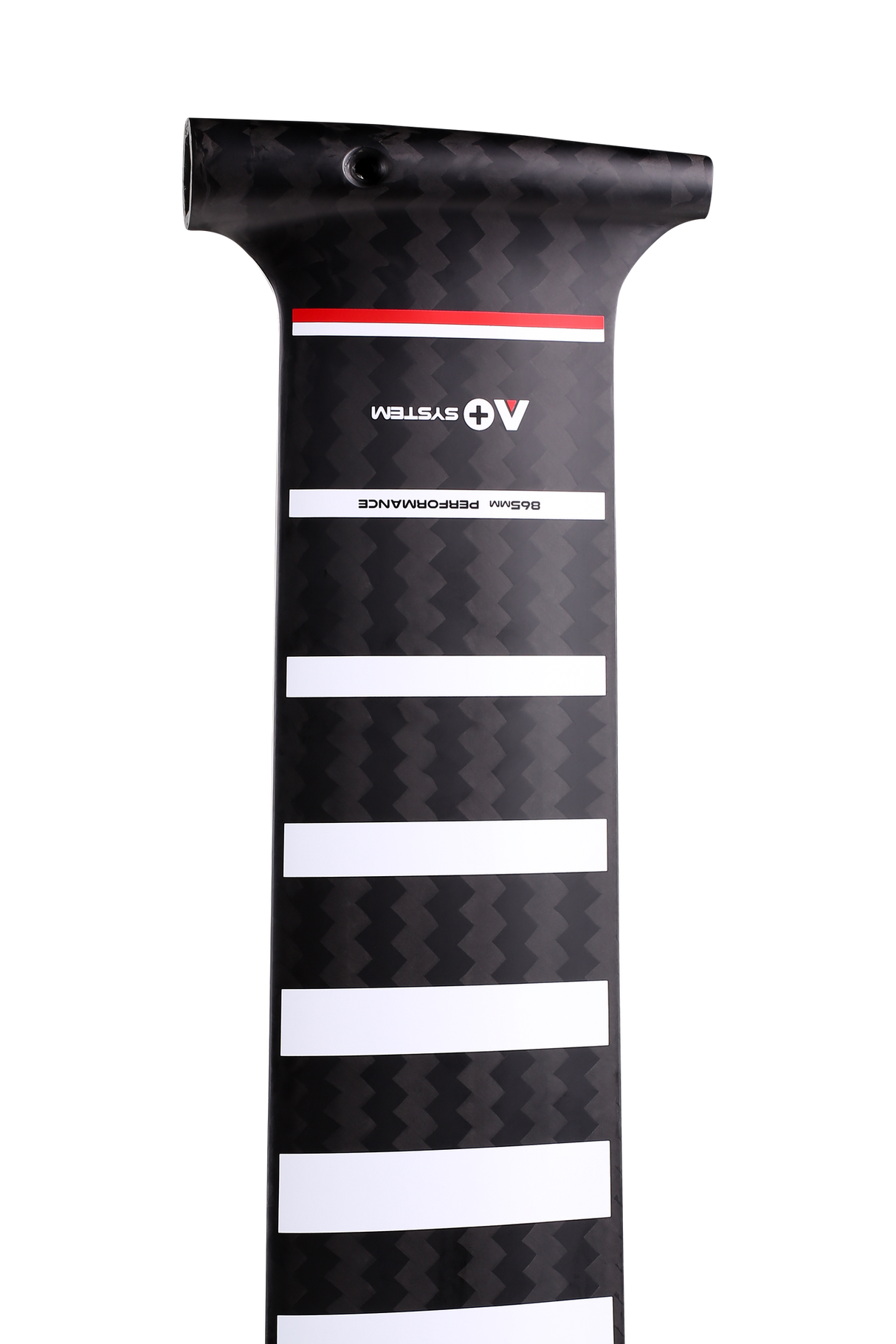

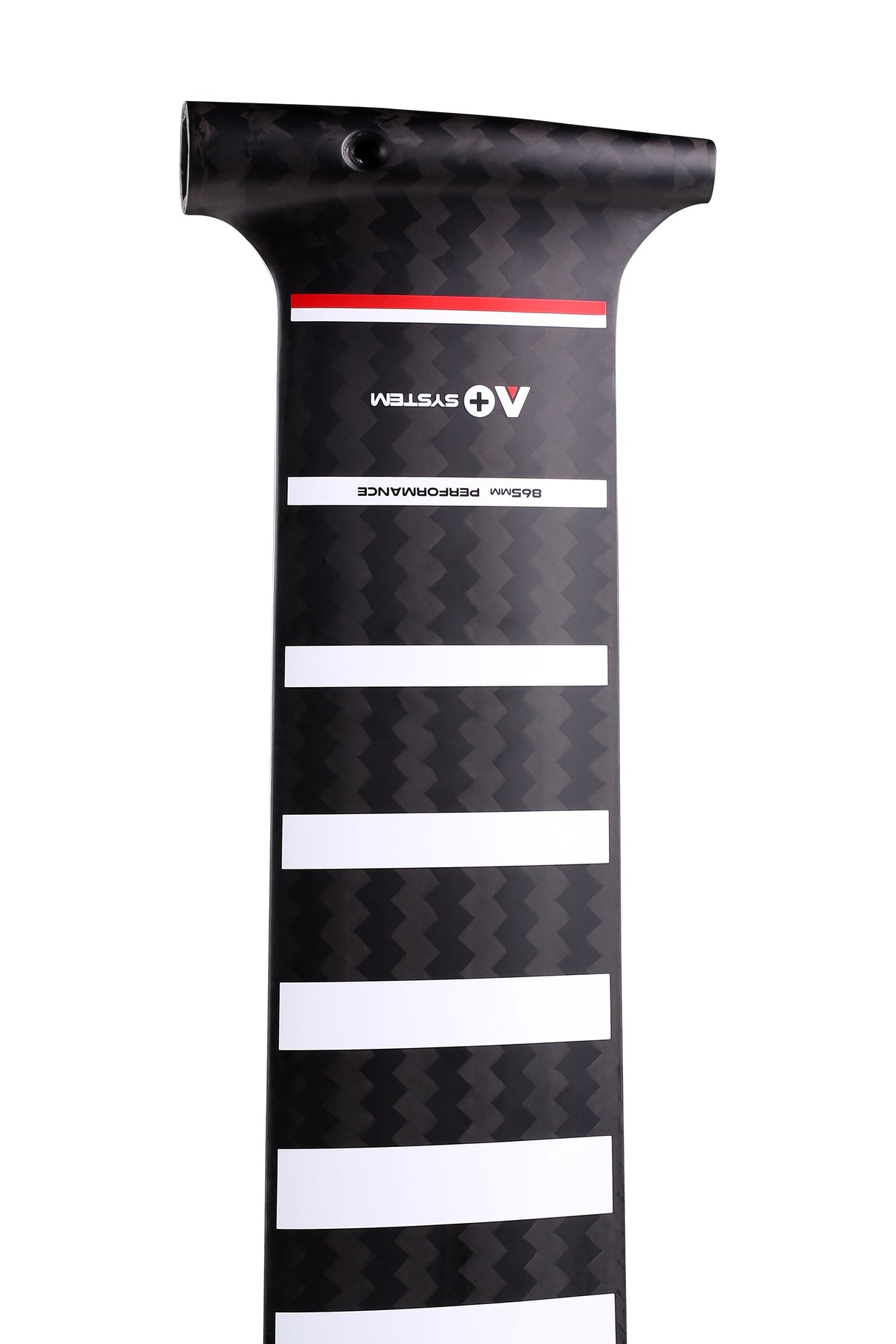

Performance Mast MA865
The do-it-all length for wing, SUP surf, tow surf, kite, high wind downwind and prone surf.

Specifications:
LENGTH: 865mm
WEIGHT: 1925g

Recommendations:
WING, SUP SURF, TOW SURF, KITE, DOWNWIND, PRONE SURF
